Accumulair Furnace Air Filters: MERV 8 to MERV 13, Tested to ASHRAE Standard 52.2

Ratings run uneven across sizes, and that unevenness is useful. The Gold eight-pack sits at 4.7 stars from 321 buyers and the mid-size Platinum at 4.5 from 357, both samples large enough to trust. The narrow Platinum sits lower at 3.9. Newer sizes carry single-digit review counts, which is too thin to read as a verdict in either direction.

Accumulair replacement HVAC filters sell through major online listings, and the same tiers turn up at home-improvement and big-box retailers. Pricing moves constantly, so the listing itself is the only accurate source at any given moment. Match the size first, then the tier, then check today's price for that size. Buying four of the wrong size is the expensive mistake, not the tier choice.

Static-pressure and CFM figures do not appear in the product details for any size, which is a real gap if you calculate pressure drop before an upgrade. MERV ratings are published; airflow resistance is not. For an older system with marginal return ducting, the practical substitute is watching register airflow for a week after a tier change and stepping back if it weakens.

Gold runs MERV 8 across every Gold size. Carbon sits at MERV 10 with an activated-carbon odor layer. Platinum holds MERV 11 on Tribo-Electric synthetic media. Diamond tops the range at MERV 13. All four share the same shallow depth, so moving between them needs no change to the slot, the frame, or the cover plate.

Every size measures a nominal 1 inch deep, with the synthetic tiers printing an actual depth of three-quarters of an inch. That fits the standard shallow slot on most residential furnaces and air handlers. A 4-inch or 5-inch media cabinet needs a deep-pleat filter instead, since a shallow pleat rattling inside a deep track lets air slip around every edge.

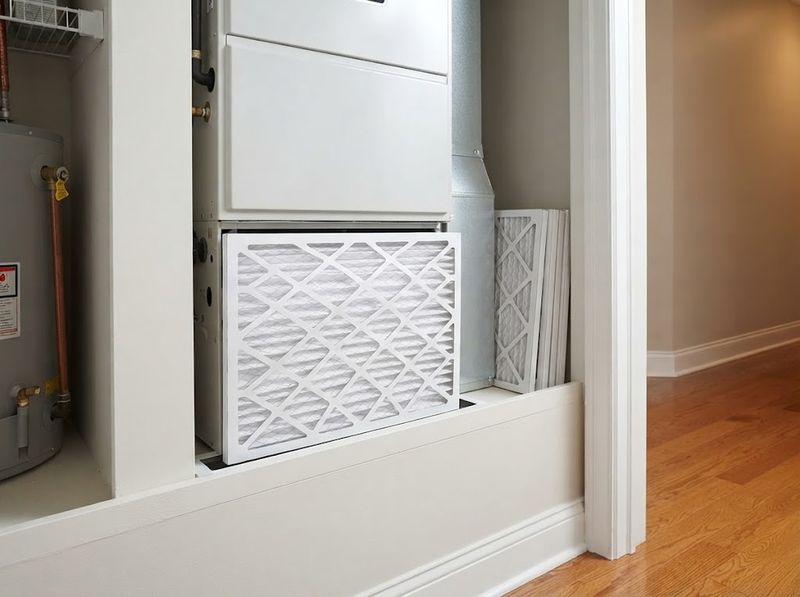

Tribo-Electric media is a synthetic co-polymer micro-fiber that carries a static charge to attract particles, used on the Platinum tier. The fibers are hydrophobic, so the pleats shed moisture rather than absorbing it, which matters in a damp basement return. Wet media sags and starts supporting the growth it should be trapping. A galvanized metal backing keeps the pleat pack square.

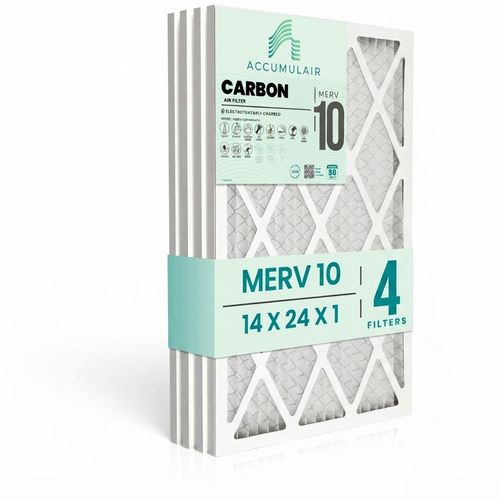

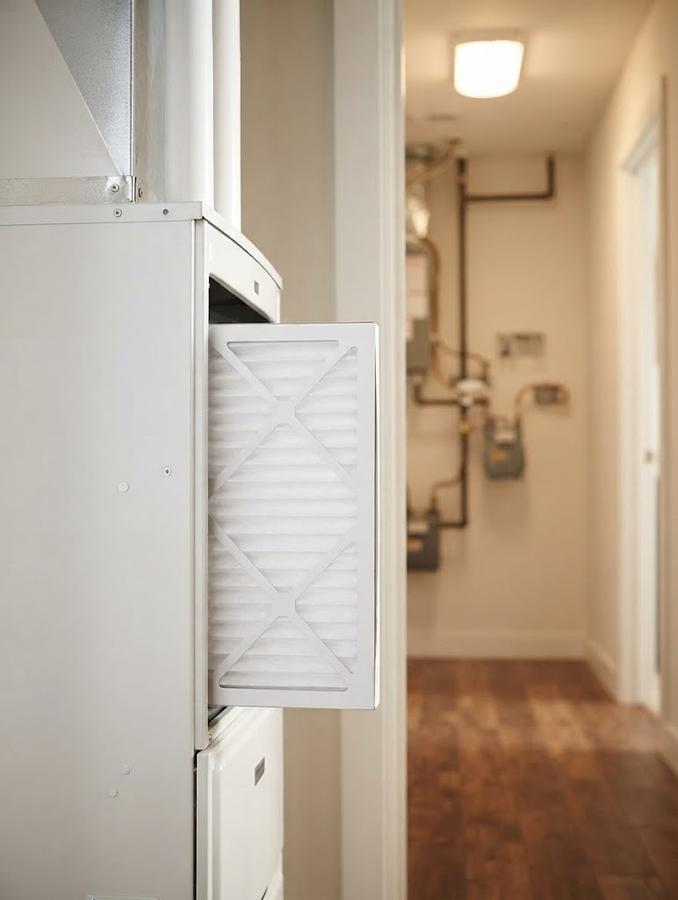

The Carbon tier layers activated carbon over MERV 10 pleated media, so it works on odor molecules alongside the 80% of large particles the media traps. Results depend on the source: it thins cooking smells passing through the return, and it will not clear a smell coming off the room itself. One buyer found it weak for odor, so treat it as a supplement rather than an air scrubber.

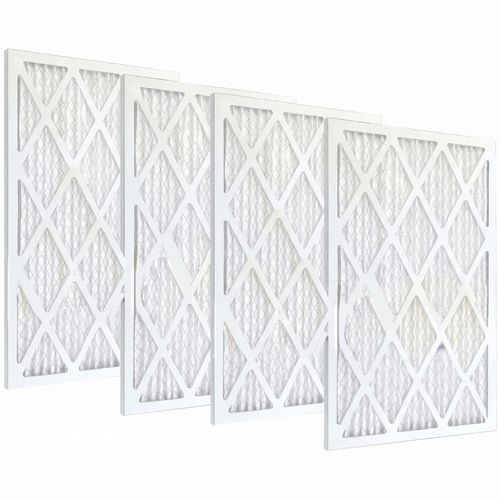

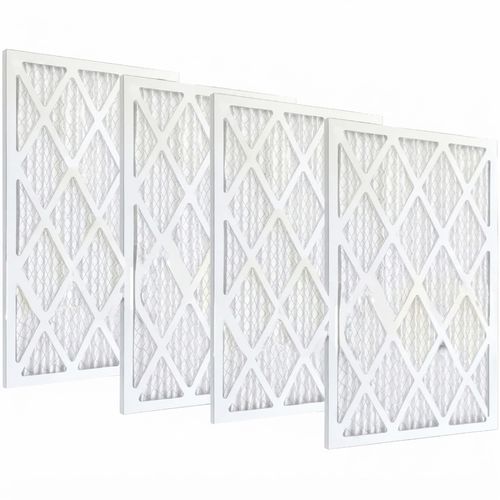

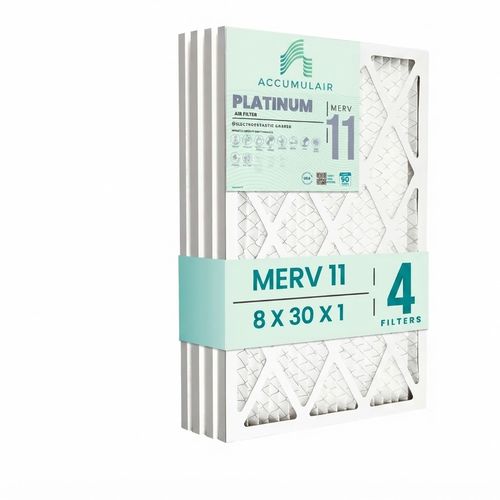

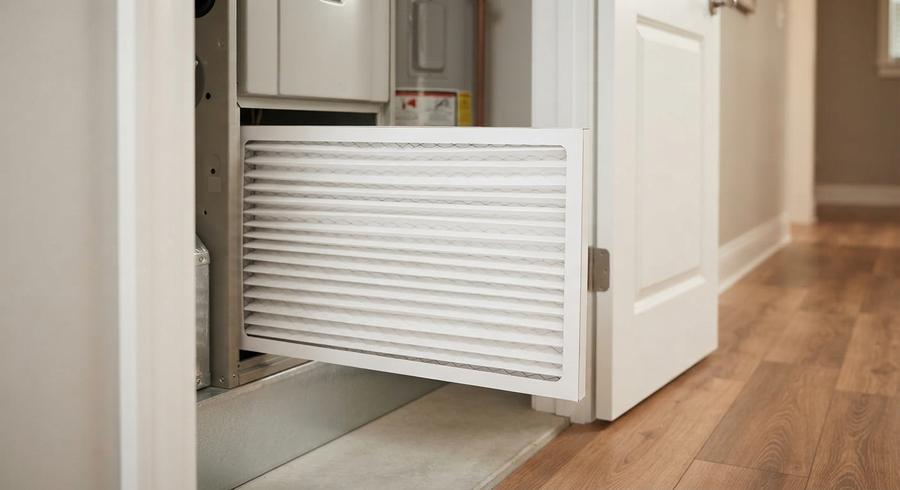

Sizes run from a narrow 8x30x1 through a 22x24x1, covering both odd dimensions and common ones. Hard-to-shelf sizes such as 17x21x1 and 19x23x1 are the reason many buyers reorder here rather than checking stores. Every size ships in the same shallow depth. Match the printed actual dimensions to your slot before ordering, not just the rounded label.

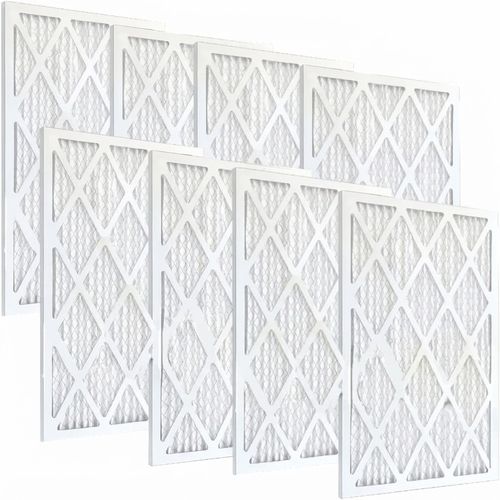

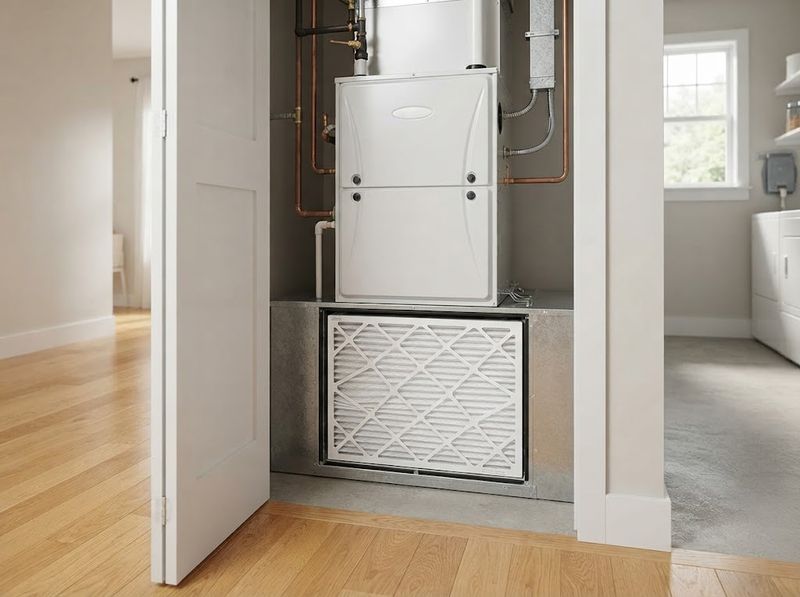

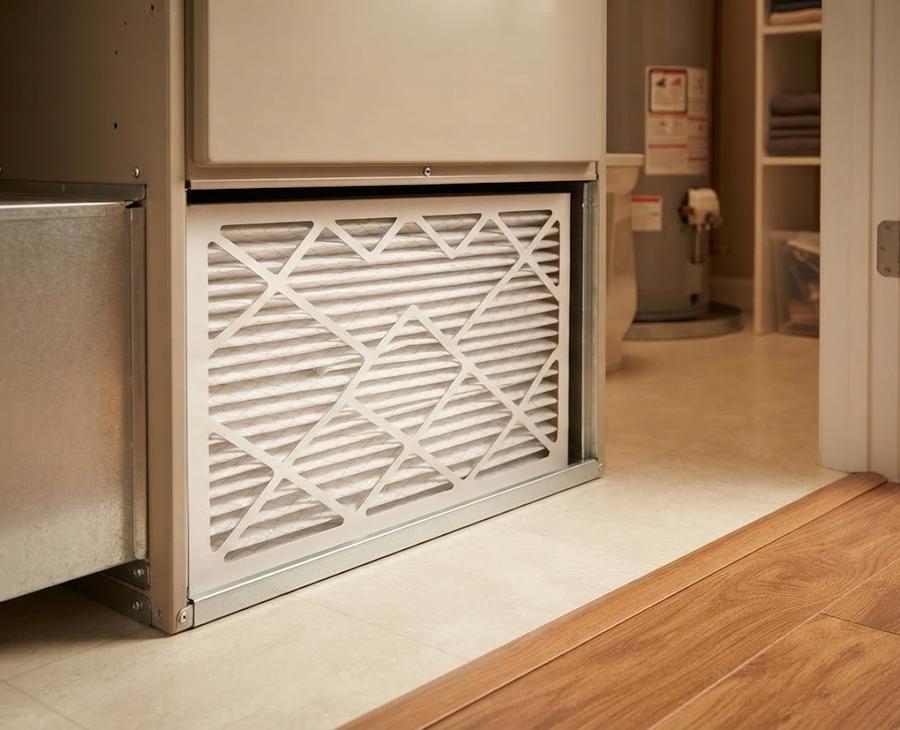

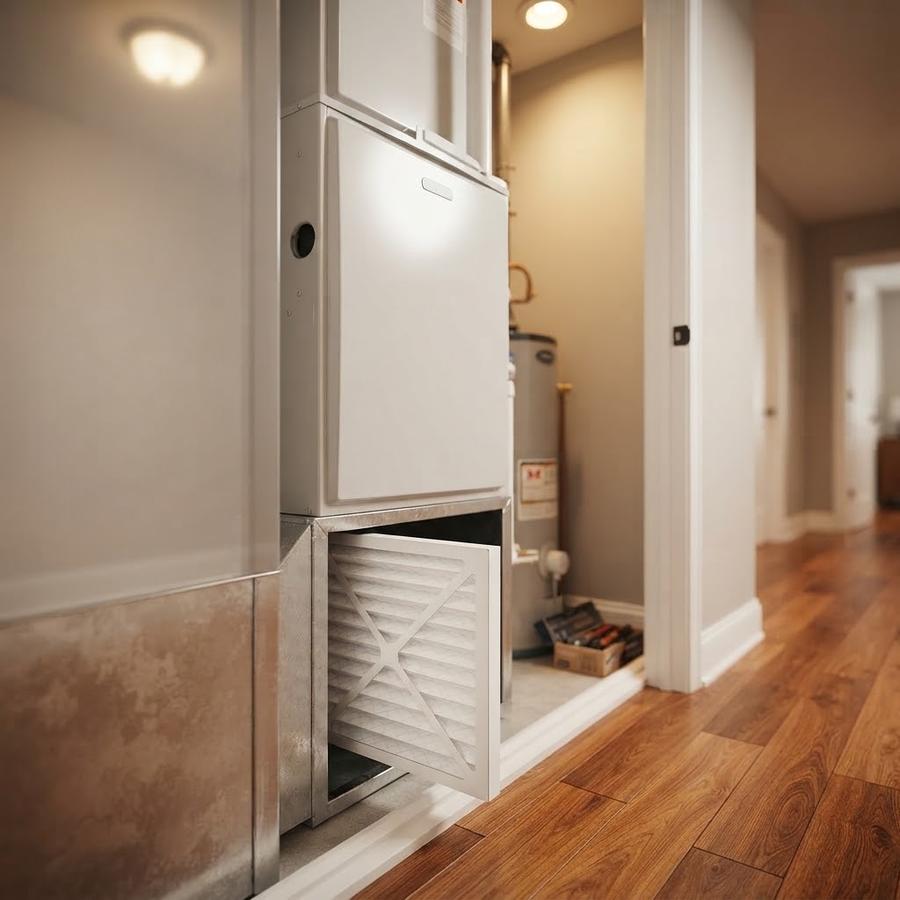

Pack count is the only difference. The same MERV 8 Gold filter ships four to a box or eight, with the eight-pack appearing on one Gold size. Eight filters cover two years of quarterly changes on one return, or a single year across two returns. Store the spares flat and dry, since a warped pleat pack never seats cleanly in the track.

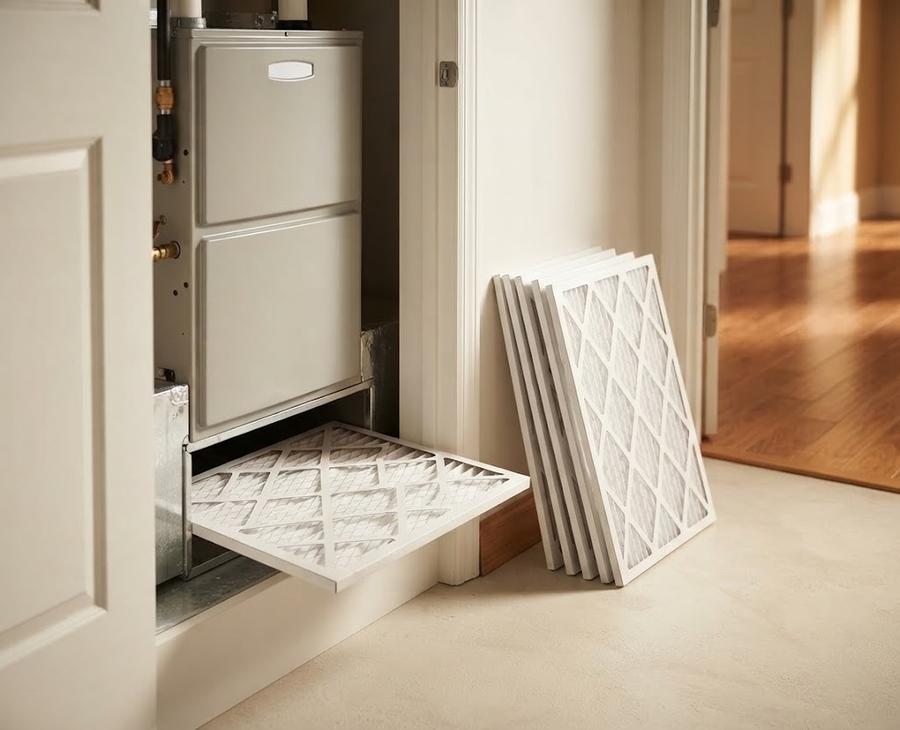

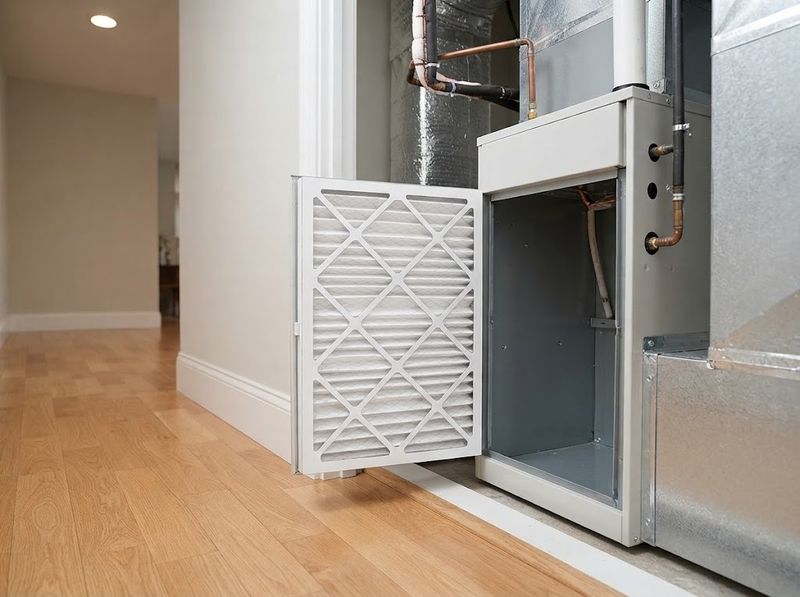

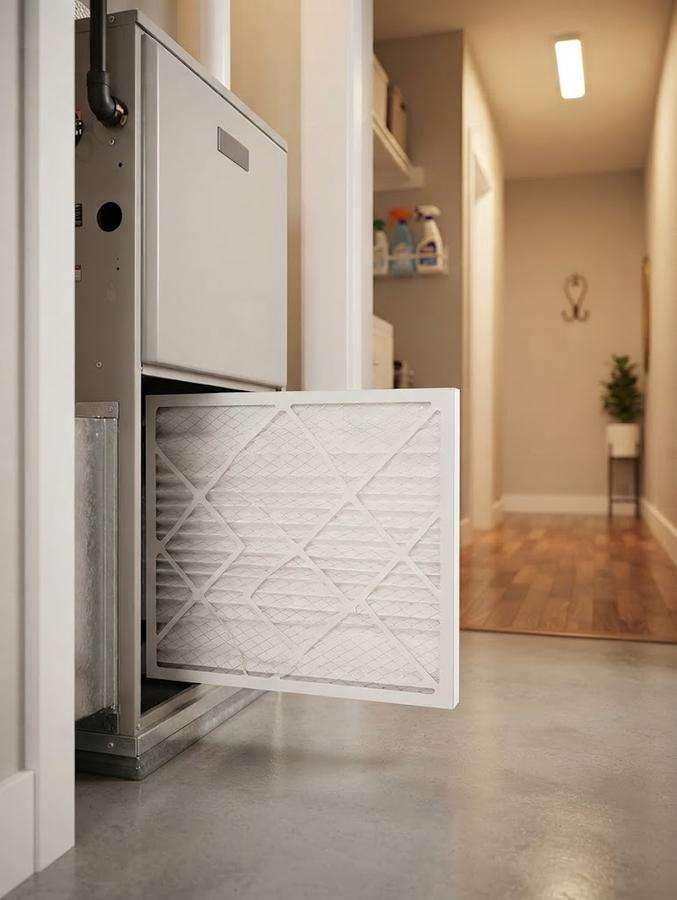

The arrow printed on the frame points toward the blower, following airflow from the return into the furnace. In a ceiling or wall return, the arrow points into the duct. In a slot beside the air handler, it points toward the unit. Installed backwards, the filter still catches particles but loses efficiency, and the media can bow under suction.

The rule holds across Gold, Platinum, Diamond, and Carbon: the arrow follows air toward the blower. Orientation matters more on the higher-rated synthetic media, where the pack is denser and the frame flexes further if pressure loads it from the wrong side. Check the arrow before the slot cover goes back on, since a reversed filter is easy to miss.

Every tier is a disposable pleated or synthetic filter, designed for one quarterly cycle and then replacement. Rinsing one collapses the pleats and strips the electrostatic charge doing much of the capture work, leaving a wet frame that grows mold. Washable electrostatic filters are a different product built on a rigid frame with a metal mesh. Recycle the sleeve and discard the media.

Frames are cardboard-bordered, with media laminated to a metal backing on the Gold and mid-size Platinum builds, which resists flexing under suction. Buyers on the synthetic tiers have called the frame thin, and two reviews describe pleats crushed before installation. Check that the frame sits square in the track and the cover closes fully; a filter bowing toward the duct is undersized or seated wrong.

The Platinum, Diamond, and Carbon spec sheets list air conditioners, furnaces, heat pumps, and packaged HVAC units as compatible, while the Gold tier lists furnace use. What actually determines fit is slot dimension and depth rather than the equipment brand. Any system with a shallow return slot in a listed size accepts an Accumulair air filter for furnace and AC use. Residential and light-commercial systems both appear in the compatibility notes.

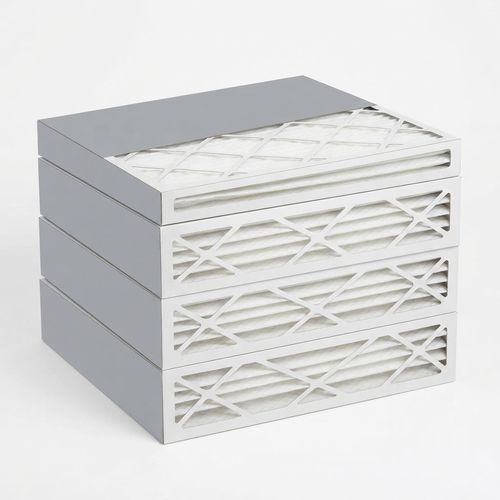

Two constructions run through the tiers. Gold and the mid-size Platinum use pleated media laminated to a galvanized, corrosion-resistant metal backing. The narrow Platinum, Diamond, and Carbon use synthetic fiber media in a lighter build, with the Platinum version on hydrophobic Tribo-Electric fibers. Metal backing resists deflection under high suction, while synthetic media handles moisture better in a damp return.

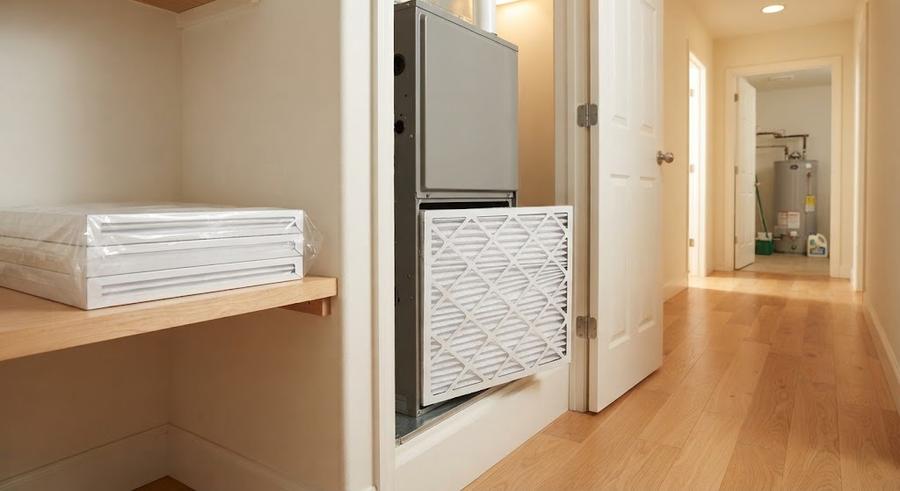

MERV 11 is the allergy answer, capturing 94% or more of fine airborne contaminants including the dander and fine dust that a MERV 8 pleat passes at its 76% band. The tradeoff is resistance. On a system under roughly 15 years old with adequate returns, the step up rarely shows in airflow. On an older furnace with one undersized return, watch for weaker registers.

HEPA captures 99.97% of particles at 0.3 microns, tested inside a sealed housing with its own fan. MERV 13 reaches a finer band than MERV 8 or 11 but stops well short of that, and no shallow furnace pleat meets HEPA resistance without starving a residential blower. Use MERV 13 in the return for whole-house reduction and a portable HEPA unit where someone sleeps.

MERV is the industry scale running 1 to 16. MPR is a proprietary scale used by one manufacturer that counts only the finest particle range, so MPR 1000 to 1200 lands near MERV 11. FPR is a retailer scale running 4 to 10, where FPR 7 sits near MERV 11. Accumulair publishes MERV only, which compares directly against any brand quoting the same scale.

Denser media does add resistance, and a shallow pleat has limited surface area to spread it across. Much depends on your ductwork. A system with generous returns handles MERV 13 comfortably, while an older furnace with a single undersized return can short-cycle on its high-limit switch at MERV 11. No static-pressure figures are published here, so change one variable and watch the registers.

Comparison starts with the scale. Accumulair publishes MERV while 3M Filtrete publishes MPR, so translating between the two is the first step. Nordic Pure and Honeywell publish MERV as well, which makes a rating-for-rating comparison straightforward. What differs here is the actual size printed on the synthetic tiers and stated US assembly on three of them. Frame construction is where buyer opinions split.

A 4-inch media filter carries several times the surface area, so it holds more dust at lower resistance and often runs 6 to 12 months. A 1-inch pleat needs replacing quarterly. The catch is the cabinet: a deep filter needs a deep housing, and retrofitting one is a sheet-metal job. Every filter here is built for a standard shallow slot.

They solve different problems. The furnace filter treats every cubic foot the system moves and keeps grit off the equipment, but only while the fan runs. A portable purifier treats one room continuously with its own fan and can carry true HEPA media. A household with a respiratory reason usually runs both: MERV 11 or 13 in the return, a purifier in the bedroom.

Platinum at MERV 11 reaches the dander band, capturing 94% or more of fine airborne contaminants including pet dander. For smell rather than particles, the Carbon tier layers activated carbon over MERV 10 media. A multi-pet household often runs Platinum in the main return and swaps closer to day 60, since dander mats the pleats faster than ordinary household dust.

Ragweed pollen sits in a size range MERV 11 handles well, alongside mold spores in a similar band, so Platinum is the practical choice through allergy season. MERV 13 catches more of the fine fraction if the system tolerates it. Filtration only treats air moving through the return, so pair it with closed windows during peak counts and a shorter replacement interval.

Sanding and cutting throw fine particles the return pulls straight toward the bedrooms. MERV 11 catches that band without the pressure penalty MERV 13 puts on a residential blower. Change the filter after any heavy dust-producing project rather than waiting for day 90. A shop vacuum at the source does more than any furnace filter, since the return only treats air reaching it.

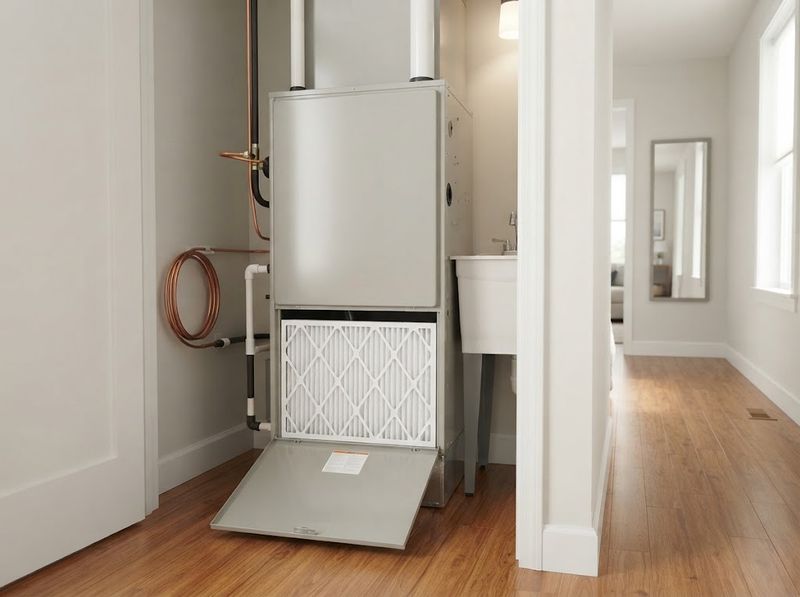

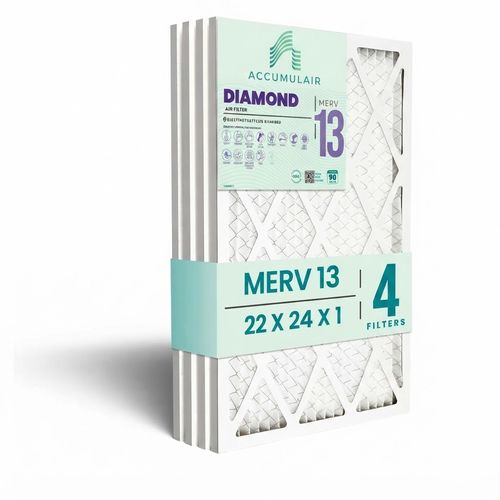

MERV 13 is the level reaching fine smoke particles, which is why the Diamond tier exists. Smoke passes a MERV 8 pleat almost untouched. Run the system fan continuously during an advisory so air keeps cycling through the media, and expect a shorter filter life that week. A portable HEPA unit in the bedroom complements the return filter rather than replacing it.

Monthly is more than most homes need, but 45 to 60 days is realistic with two or more shedding animals. Pull the filter at day 30 once and look: if the pleat faces already carry a coating, set your interval there. Dander mats faster on higher-rated media, so a MERV 11 in a pet household loads sooner than a MERV 8 in the same house.

Mixing ratings across returns works and is common in larger homes. A bedroom return can run MERV 11 while a basement return handling heavy dust runs MERV 8 to protect airflow. The system sees the combined resistance of every return, so the total matters more than any single vent. Keep the most restrictive filter on the vent with the most generous duct.

Cooling season runs the blower far more hours than shoulder months, so filters load faster from June through September. A filter installed in April is often finished by July in a hot climate. Check at day 45 during heavy cooling and replace at the first even coating. Restricted airflow while cooling also risks freezing the evaporator coil, a costlier problem than a filter.

Carpet holds and releases dust with every footstep, and only the fraction reaching the return gets filtered. MERV 11 or 13 catches more of that fraction, and owners report less settling on hard surfaces after a tier change. Running the fan continuously moves more air through the media, which does more than the rating alone. A sealed vacuum still does the heavy lifting.

Weakening airflow at the registers shows up first, followed by dust returning within a day of cleaning and longer run times to reach the same thermostat setting. An even gray coating across the pleat faces settles the question. Homes with pets or a workshop reach that point around day 45 to 60. Marking the install date on the frame edge removes the guesswork.

Write the printed actual dimensions inside the furnace door with a permanent marker the first time you install one. Every reorder after that becomes a matter of matching decimals rather than pulling a tape measure. Photographing the filter edge works too, since the size prints along the frame. Keep the rounded label and the actual measurement together, since they differ by a quarter inch or more.

Stock on odd sizes moves, and one buyer described waiting on a 20x21.5x1 that kept selling out. Either approach works. Order the next pack early enough that a gap never happens, or step to a different tier offered in the same dimension, since every tier shares the same shallow depth. Never force a filter half an inch off, because the gap lets dust bypass the media.

Vacuuming pulls the surface layer off and leaves the loaded depth behind, so most of the resistance stays where it was. It also drags across the electrostatic charge doing much of the capture work on pleated media. The pleats deform under a vacuum head, opening paths the air then takes. A filter needing a vacuum has already finished its quarterly run.

Filter media and its metal backing go in the trash in most municipalities, since mixed materials are not accepted curbside. The cardboard sleeve and shipping carton are recyclable. Bag a loaded filter before carrying it through the house so the collected dust stays where it is. Some transfer stations take metal-backed frames, and a call to the local facility settles that quickly.

Filters catch what passes through them going forward and do nothing about what settled in the ducts over past years. A house that ran without a filter, or with a saturated one, holds debris no new filter can reach. Cleaning makes sense once in that situation, after which a maintained filter keeps the ducts from reloading. Annual duct cleaning on a well-filtered system is unnecessary.

New pleated media and the adhesive holding it to the backing off-gas mildly for a day or two, which reads as a plastic or glue smell at the registers. It fades as air passes through. A smell persisting past a week points elsewhere, such as a tape repair heating up or debris on the heat exchanger. Carbon media can also smell faintly on first run.
